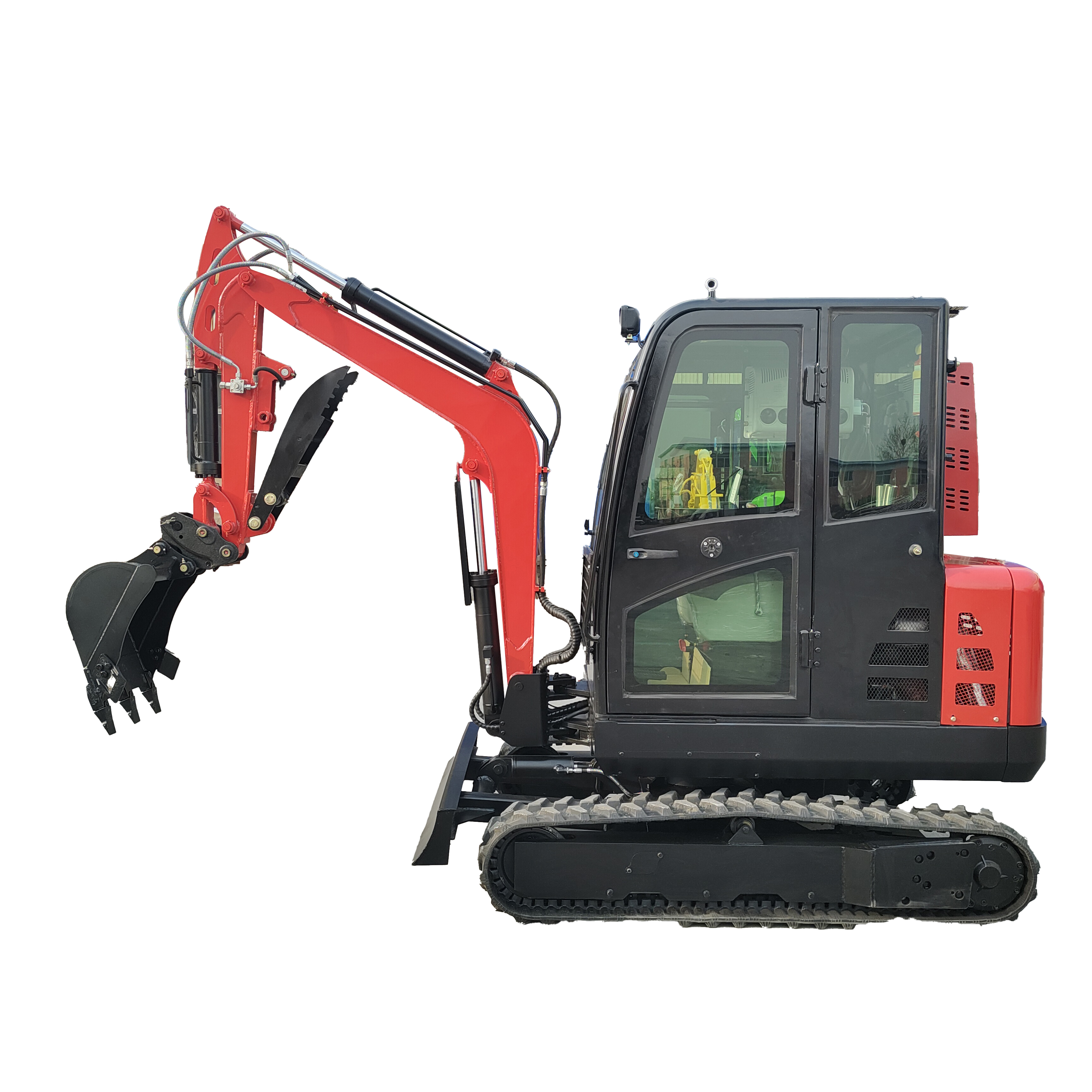

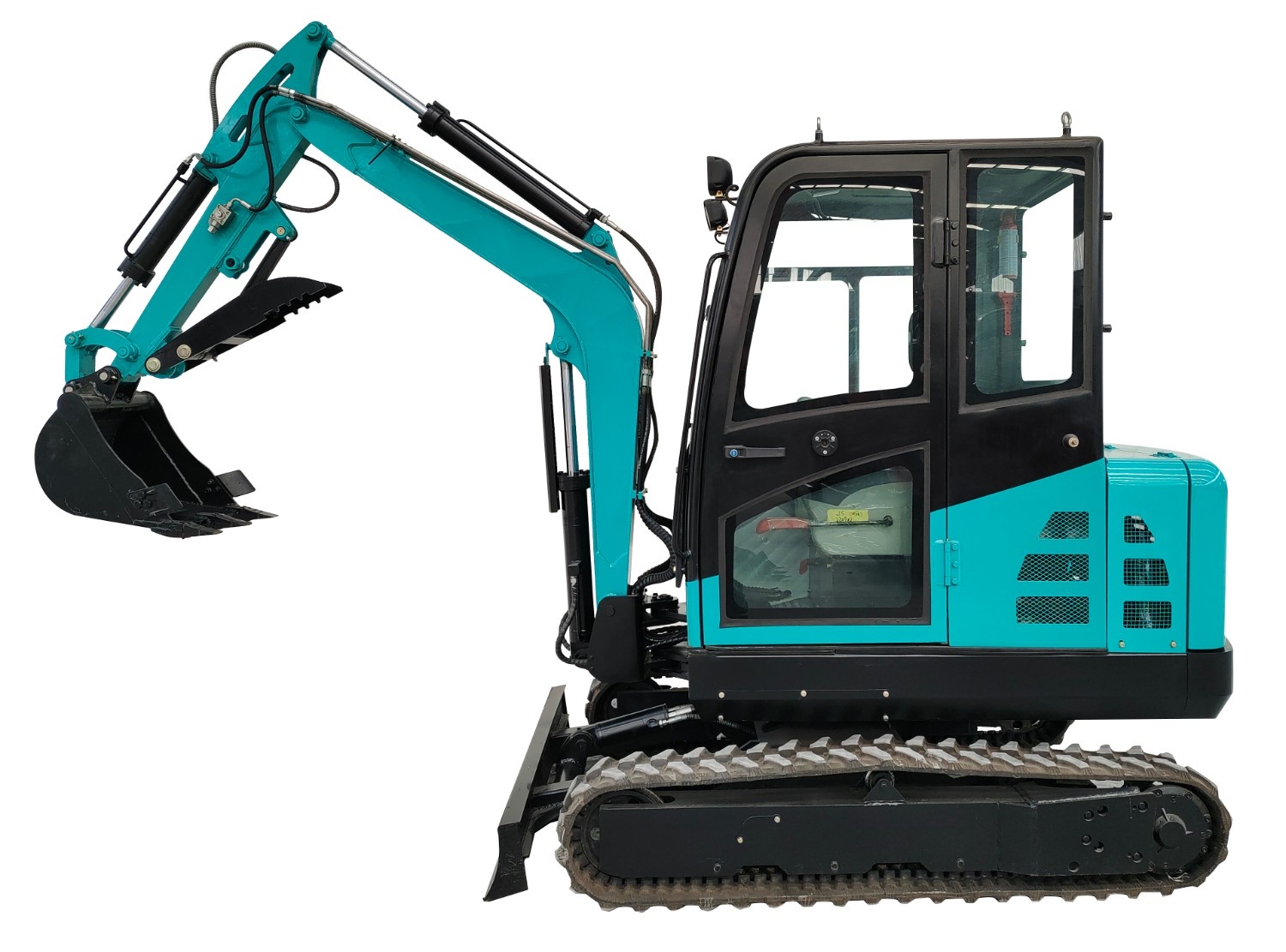

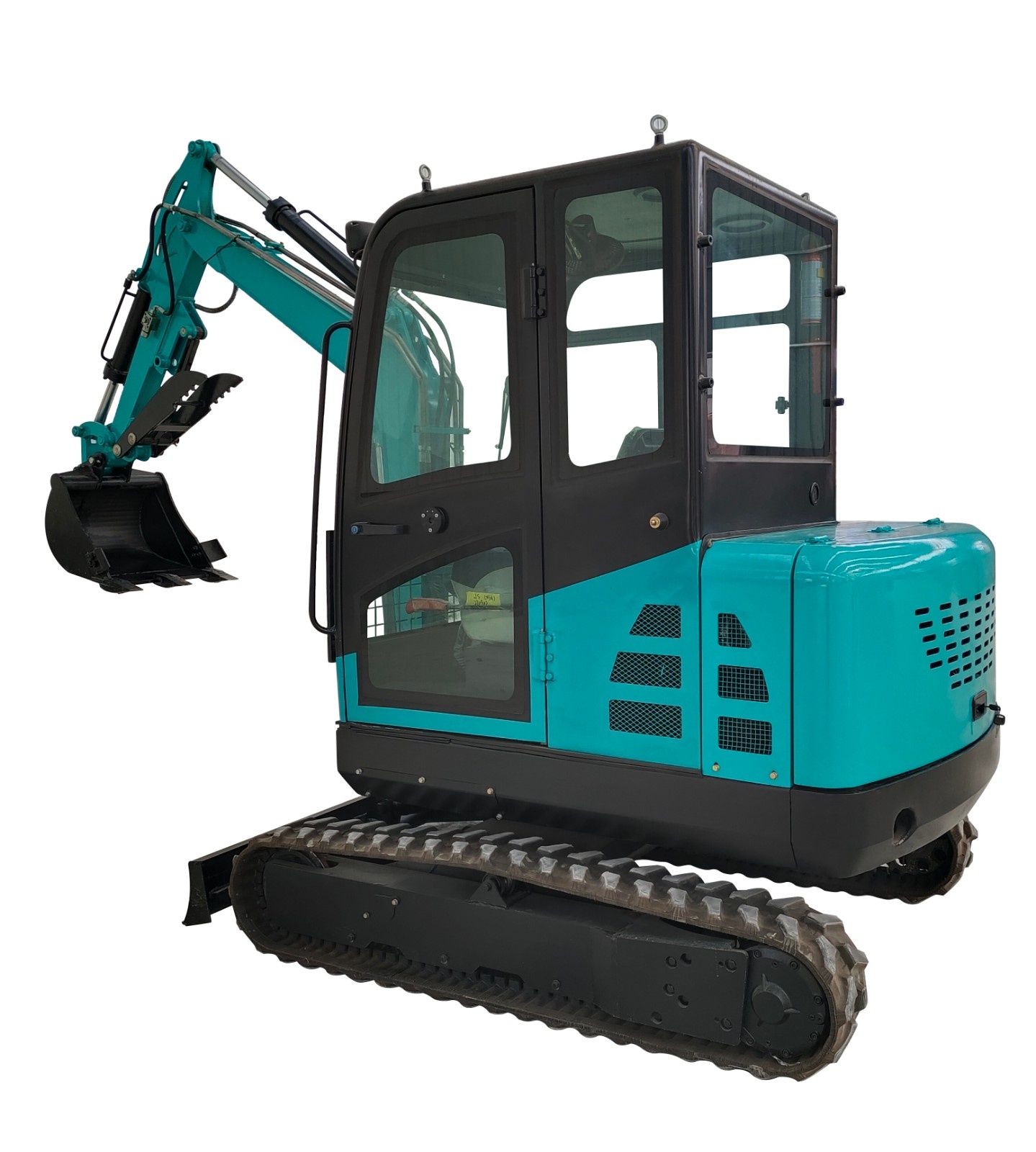

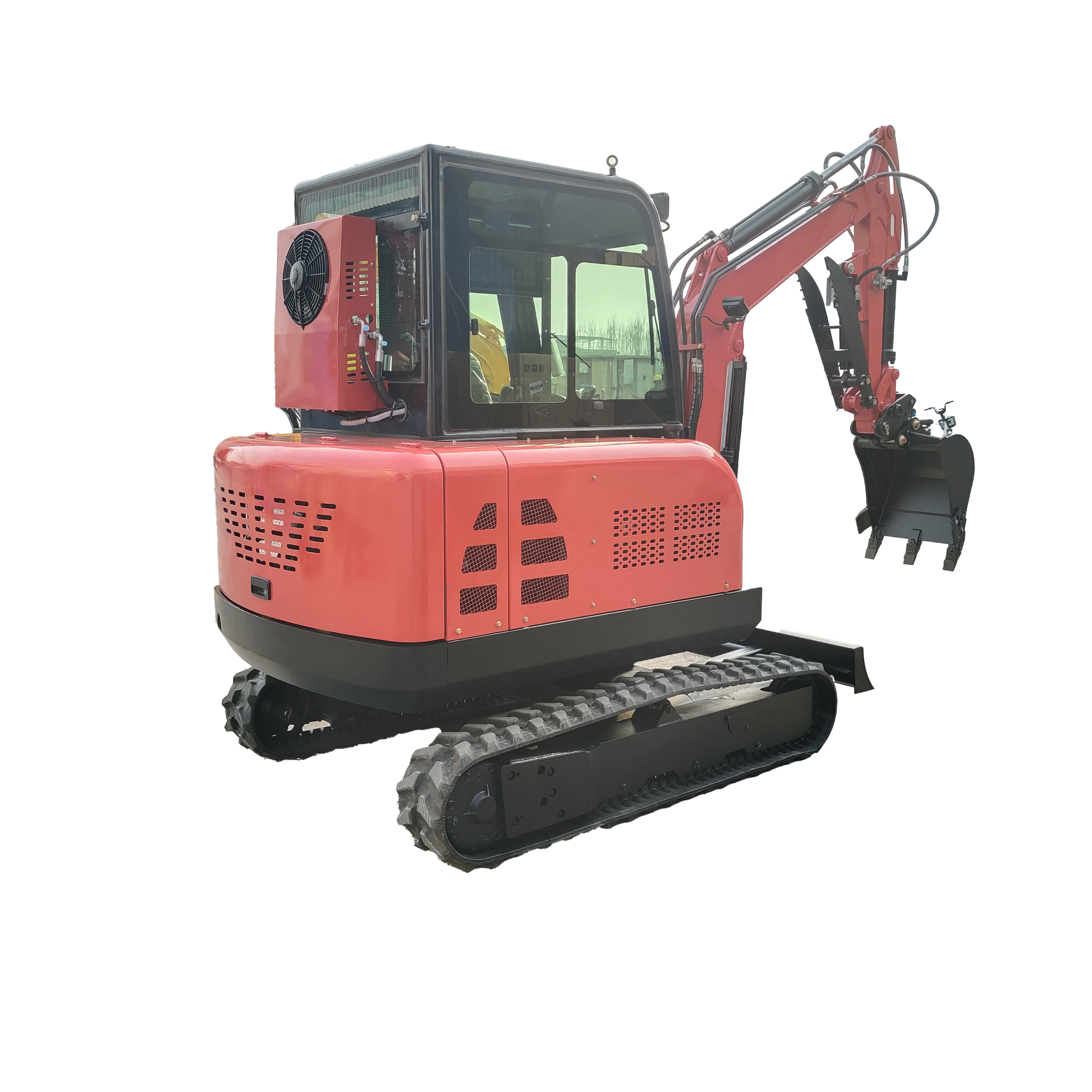

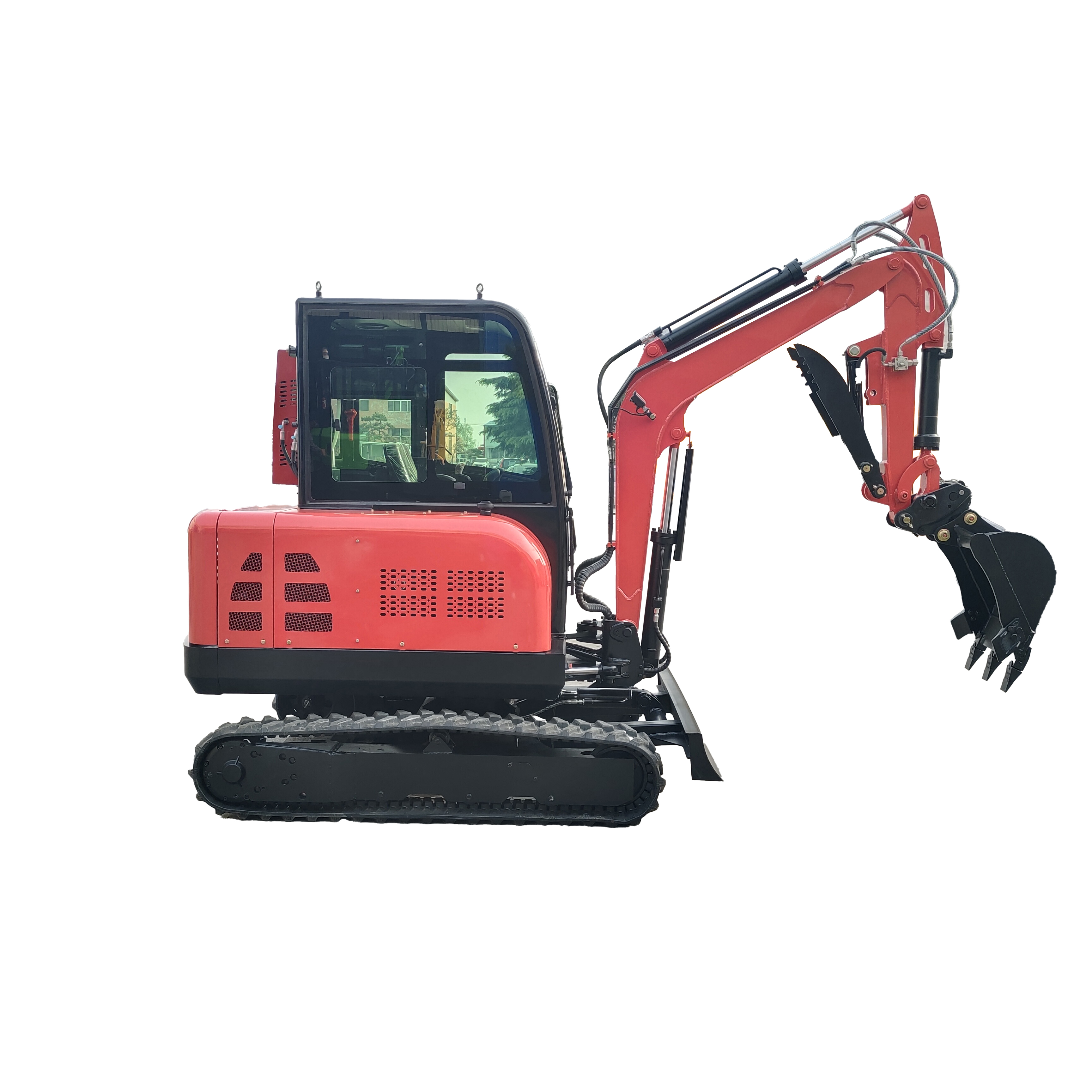

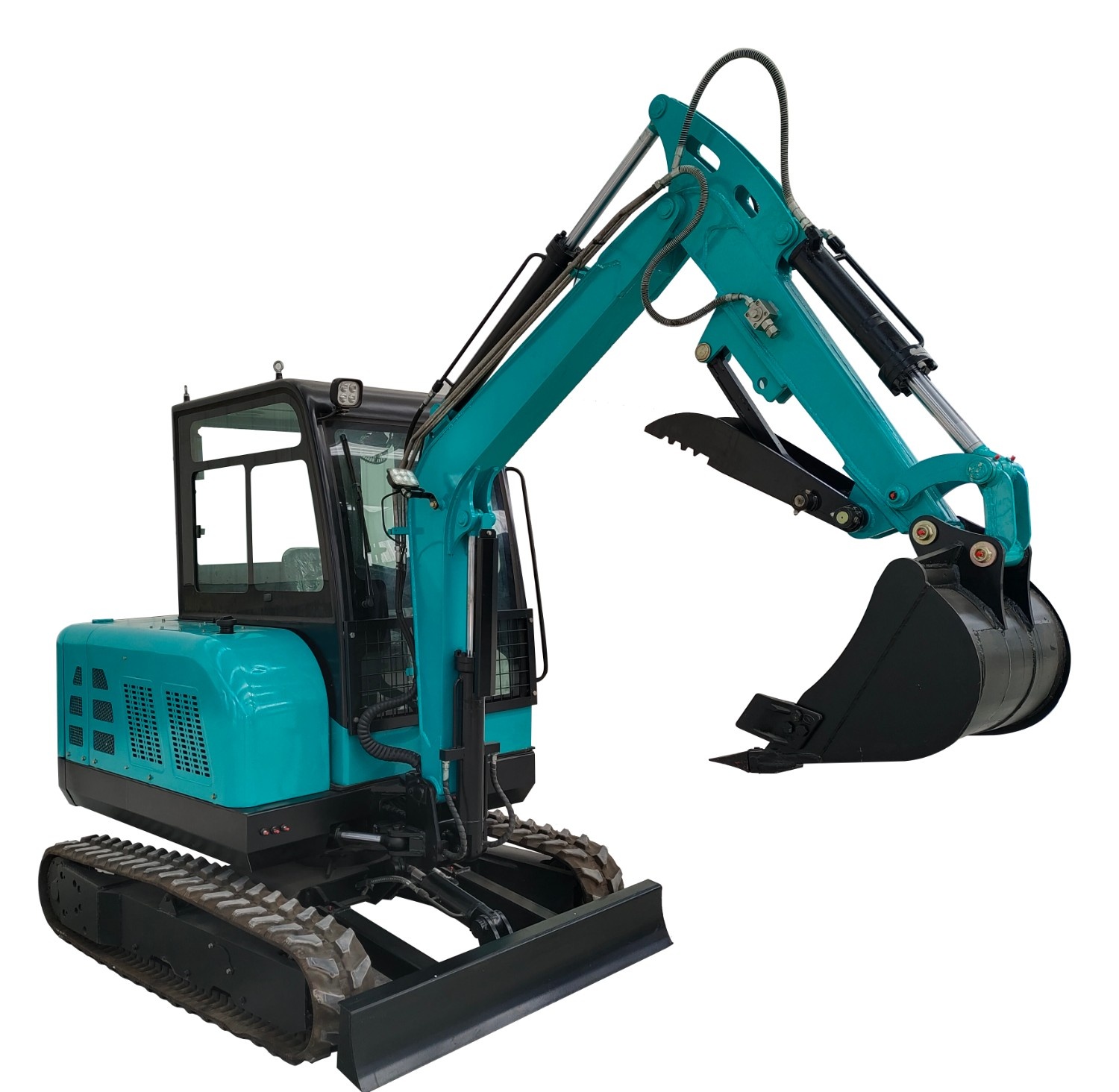

M35 Mini Excavator

LeadMan Engineering Machinery Co., Ltd. introduces the M35 — a heavy-duty powerhouse designed for power, stability, and versatility. With a 3.5-ton operating weight and a digging depth of 2,500 mm, this machine is a solid choice for challenging jobs. It is driven by a powerful Xincai 490 engine with a rated power of 36.8 kW.

Key Highlights:
🔹 Strong & Capable: 3.5-ton operating weight and a 36.8 kW engine.
🔹 Stable Design: Hydraulic controls and steel tracks for superior grip.
🔹 Flexible Use: Includes a swing arm and a sunshade canopy.

Specifications

Model Name: M35 — Mini Excavator MAIN DIMENSIONS Overall Length (mm)4180 Overall Width (mm)1500 Overall Height (mm)2250 Track Width (mm)230 Track Length (mm)2100 Body Width (mm)1500 SPECIFICATION Operation Weight3.5 ton Engine BrandXincai 490 Rated Power36.8 kW Digging Bucket Capacity0.1 m³ Bucket Width580 mm Traveling Motor丹弗斯 Travel Speed2.7 km/h Swing Motor丹弗斯 Swing Speed10 r/min Hydraulic System柱塞泵: 力克川 / 北方多路阀 Body Swing Radius1326 mm Body Swing Angle360° Boom Swing Angle (L/R)55° / 45° Max. Grade Ability35° WORKING RANGE Max. Digging Radius4040 mm Max. Digging Depth2500 mm Max. Digging Height3900 mm Max. Unloading Height2600 mm Min. Swing Radius2211 mm Max. Digging Depth of Dozer Blade190 mm Max. Lifting Height of Dozer Blade355 mm

Dimensional Drawing
