Wheel Loader

M30

Introduce

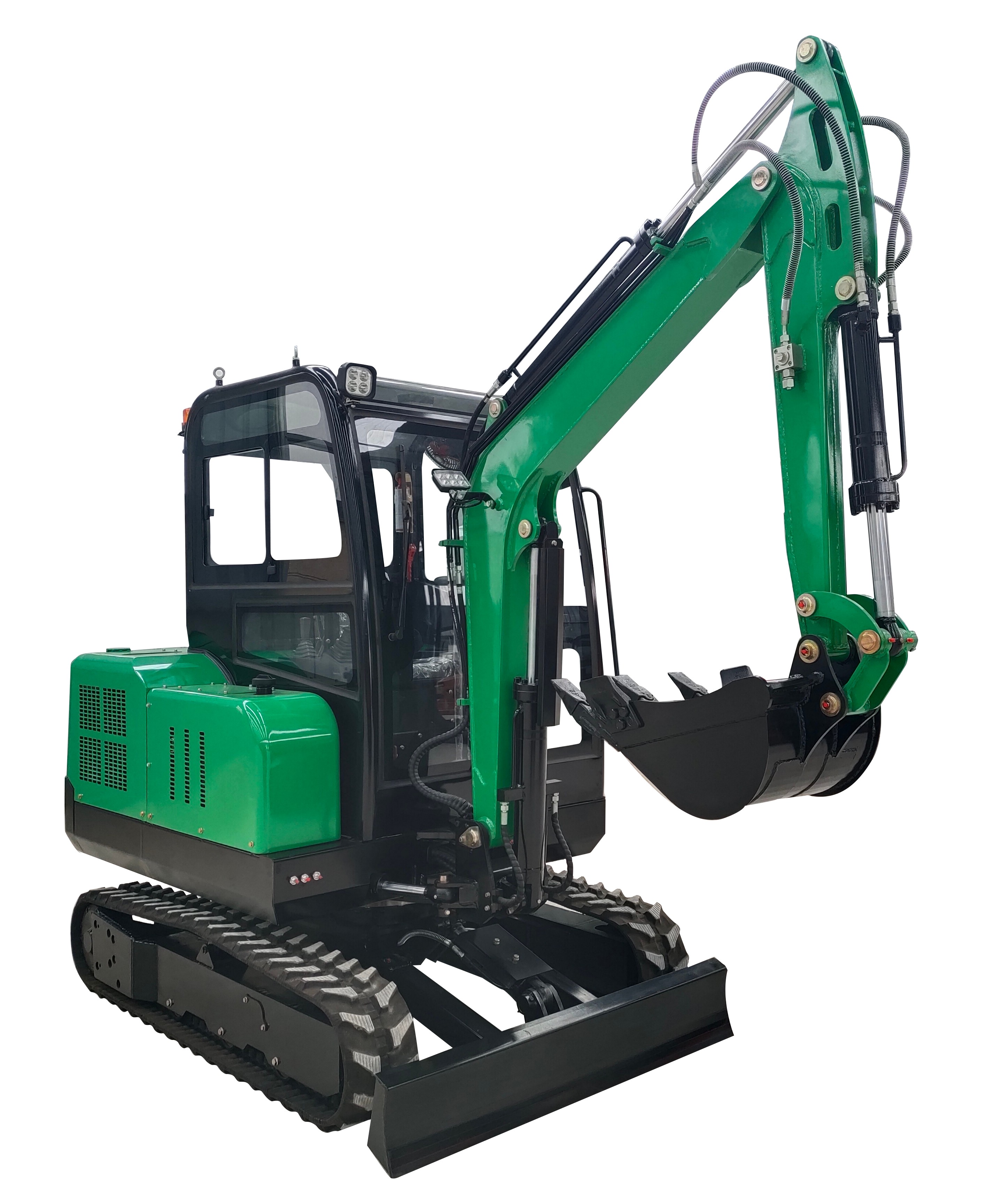

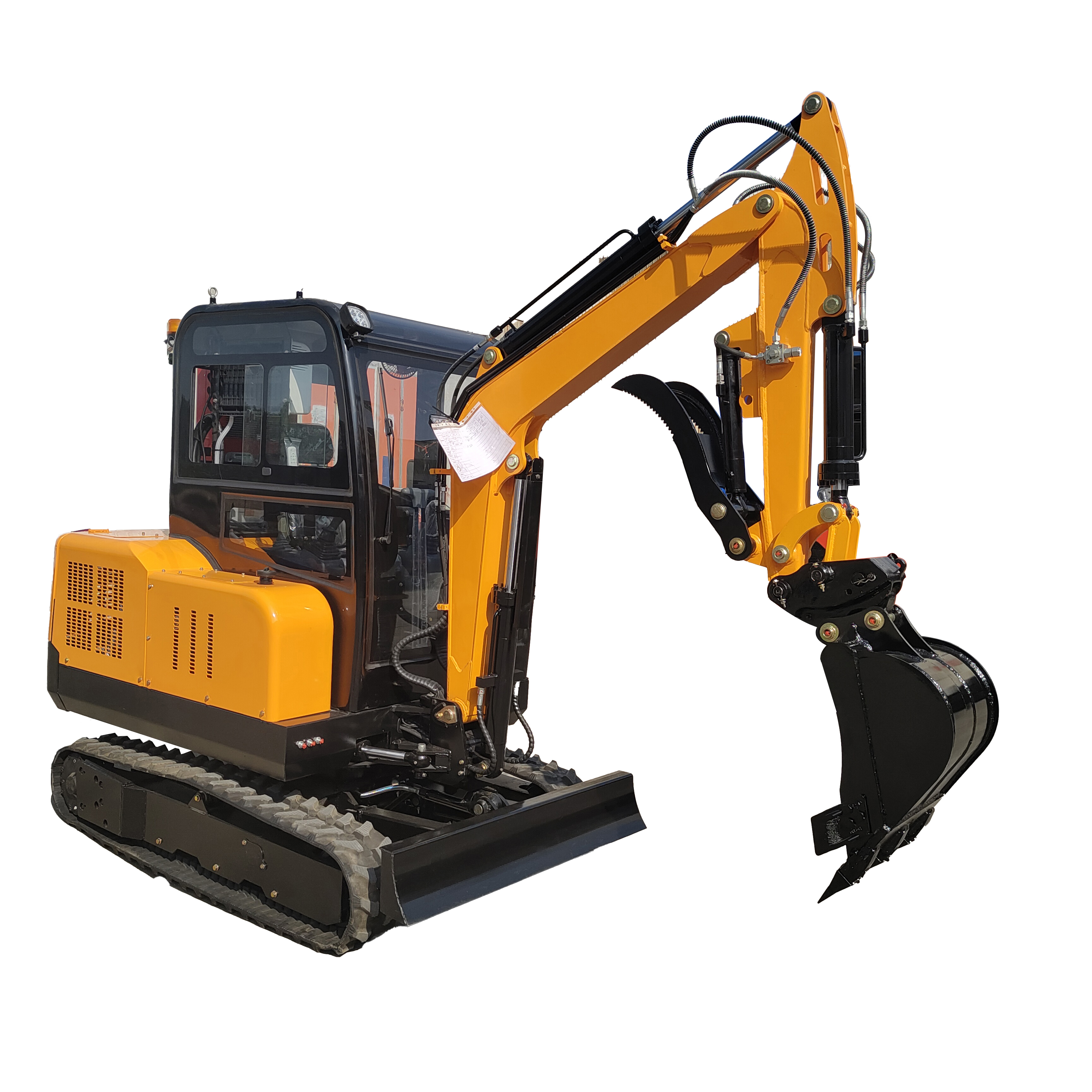

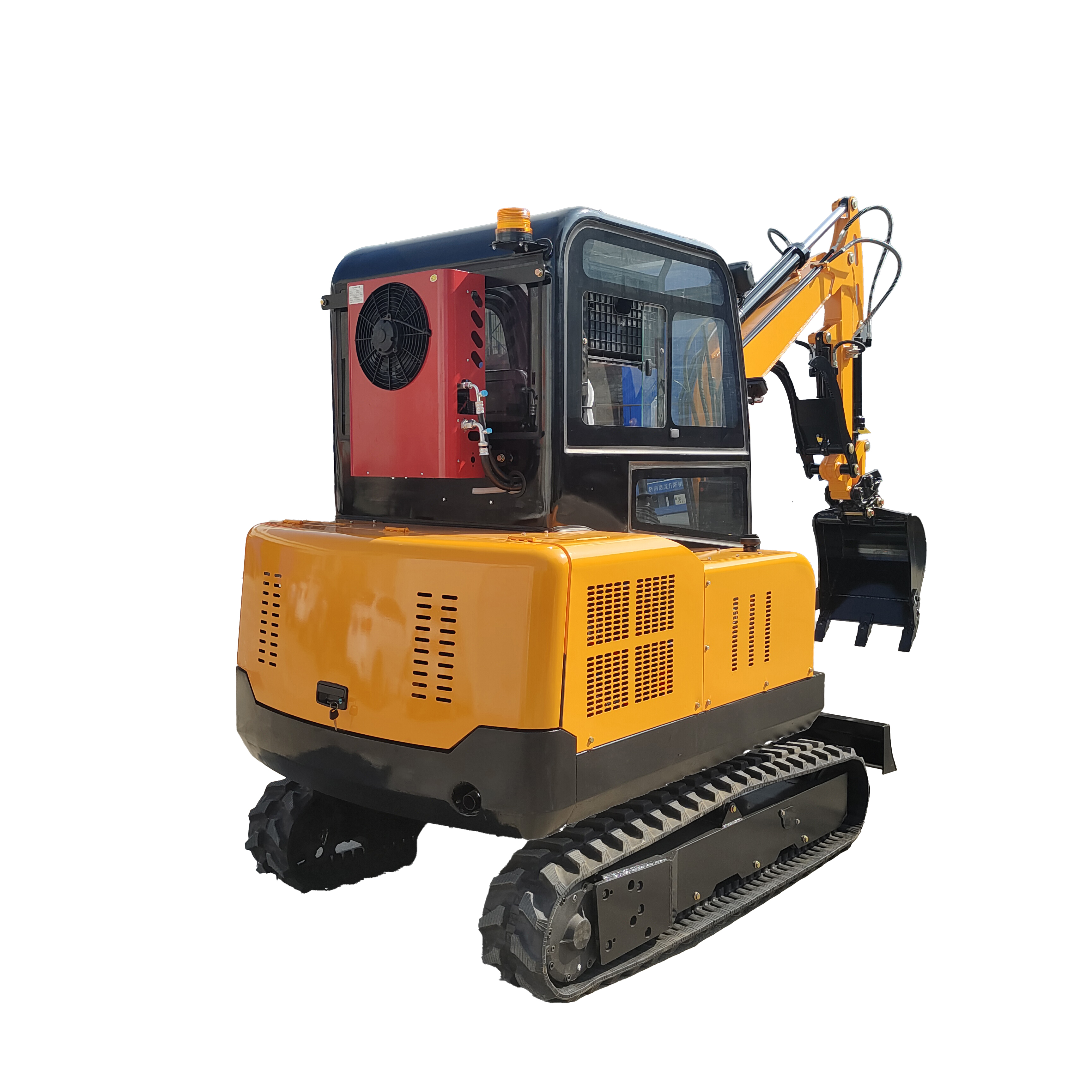

M30 Mini Excavator

LeadMan Engineering Machinery Co., Ltd. introduces the M30 — a rugged powerhouse designed for durability, deep digging, and heavy-duty tasks. With a 3-ton operating weight, this excavator offers a digging depth of 3,058 mm. It is powered by a Changcai 390 engine with a rated power of 20 kW.

Key Highlights:
🔹 Robust Build: 3-ton operating weight with hydraulic controls.
🔹 Deep Digging: Impressive digging depth of 3,058 mm.
🔹 Efficient Operation: Includes a swing arm and a toolbox.

Specifications

Model Name: M30 — Mini Excavator MAIN DIMENSIONS Overall Length (mm)4348 Overall Width (mm)1350 Overall Height (mm)2159 Track Width (mm)230 Track Length (mm)2961 Body Width (mm)1350 SPECIFICATION Operation Weight3 ton Engine BrandChangcai 390 Rated Power20 kW Digging Bucket Capacity0.1 m³ Bucket Width500 mm Traveling Motor丹弗斯 Travel Speed2.7 km/h Swing Motor丹弗斯 Swing Speed10 r/min Hydraulic System柱塞泵: 力克川 / 北方多路阀 Body Swing Radius1291 mm Body Swing Angle360° Boom Swing Angle (L/R)55° / 45° Max. Grade Ability35° WORKING RANGE Max. Digging Radius4477 mm Max. Digging Depth3058 mm Max. Digging Height3445 mm Max. Unloading Height2203 mm Min. Swing Radius2165 mm Max. Digging Depth of Dozer Blade297 mm Max. Lifting Height of Dozer Blade230 mm

Dimensional Drawing
