Introduce

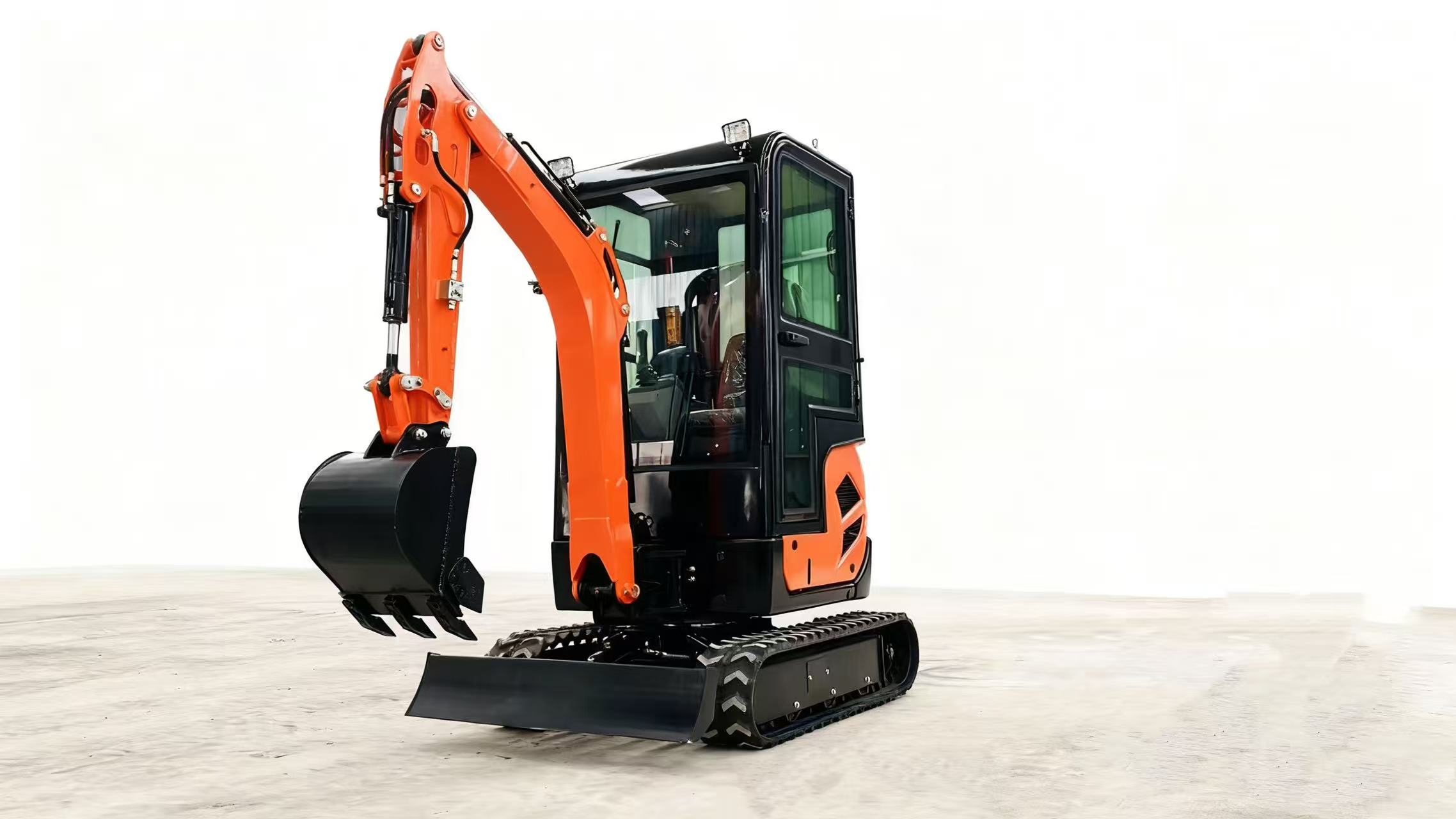

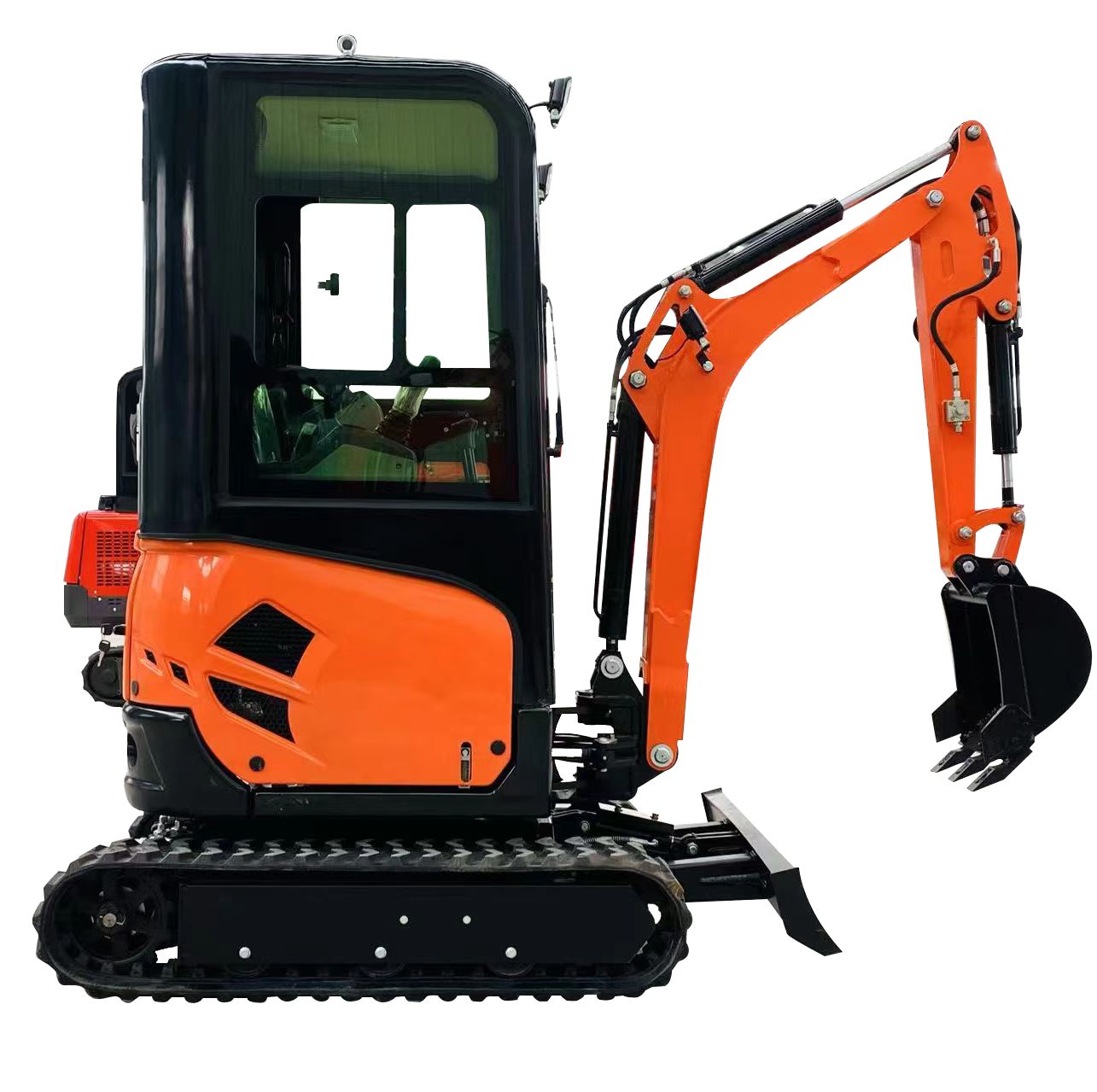

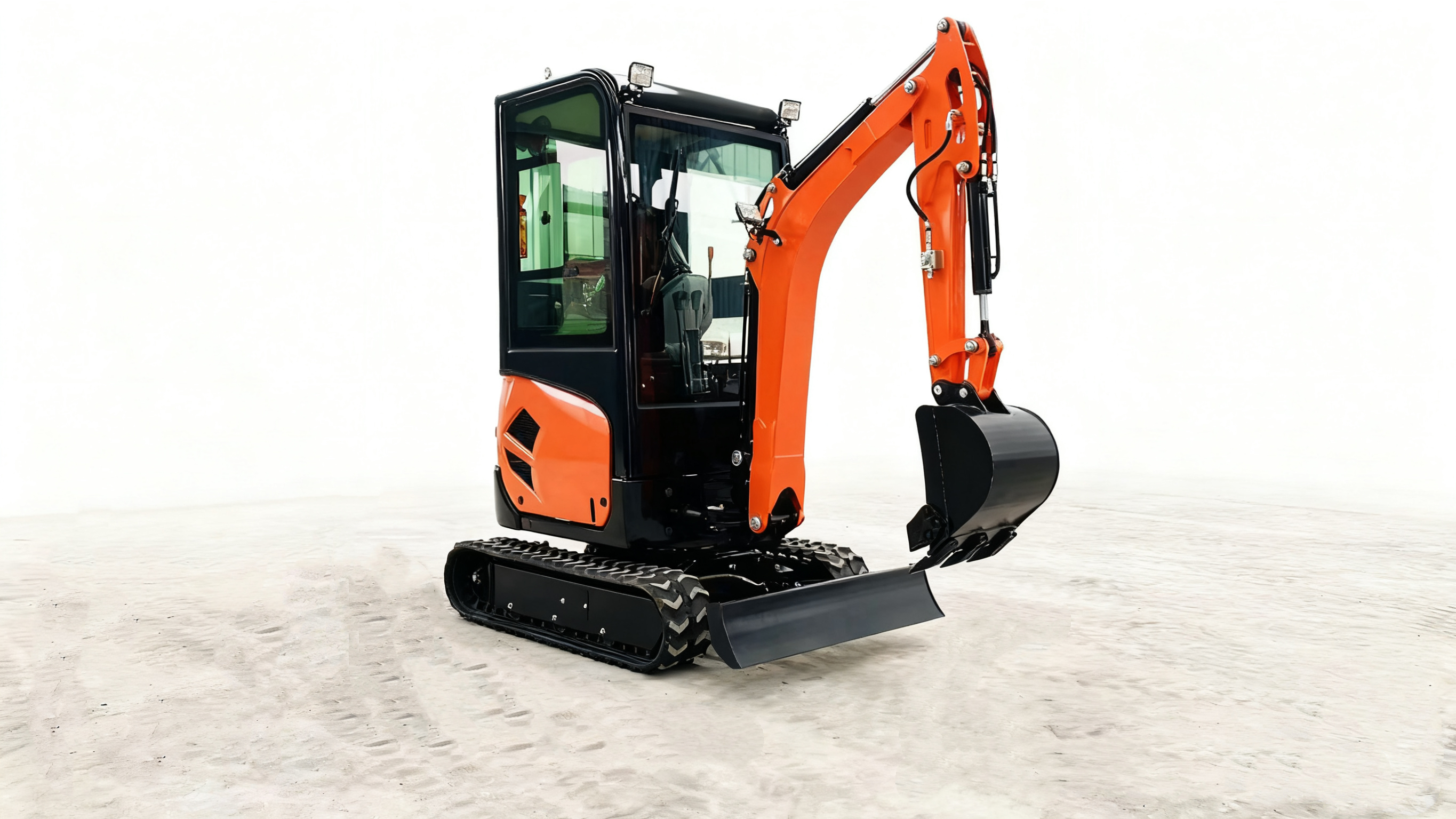

M18 Mini Excavator

LeadMan Engineering Machinery Co., Ltd. introduces the M18 — a robust powerhouse designed for demanding tasks, power, and durability. Weighing 1.8 tons, this mini excavator delivers a powerful performance with a digging depth of 2,200 mm. It is driven by a Laidong385 engine with a rated power of 18.1 kW.

Key Highlights:
🔹 Strong & Stable: 1.8-ton operating weight and a digging depth of 2,200 mm.
🔹 Powerful Engine: Features a Laidong385 engine with 18.1 kW.🔹 Versatile Operation: Includes a swing arm, rubber tracks, and a toolbox.

Specifications

Model Name: M18 — Mini Excavator MAIN DIMENSIONS Overall Length (mm)3320 Overall Width (mm)1100 Overall Height (mm)2292 Track Width (mm)230 Track Length (mm)1500 Body Width (mm)945 SPECIFICATION Operation Weight (t)1.8 ton Engine BrandLaidong385 Rated Power18.1 kW Digging Bucket Capacity0.04 m³ Bucket Width420 mm Traveling Motor三洋 Travel Speed2.1 km/h Swing Motor三洋 Swing Speed10 r/min Hydraulic System齿轮泵: 天津行走液压 / 北方负载敏感多路阀 Body Swing Radius820 mm Body Swing Angle360° Boom Swing Angle (L/R)55° / 45° Max. Grade Ability35° Fuel Tank13.5 L Hydraulic Oil Tank18 L WORKING RANGE Max. Digging Radius3500 mm Max. Digging Depth2200 mm Max. Digging Height2900 mm Max. Unloading Height1780 mm Min. Swing Radius1467 mm Max. Digging Depth of Dozer Blade329 mm Max. Lifting Height of Dozer Blade312 mm

Dimensional Drawing
