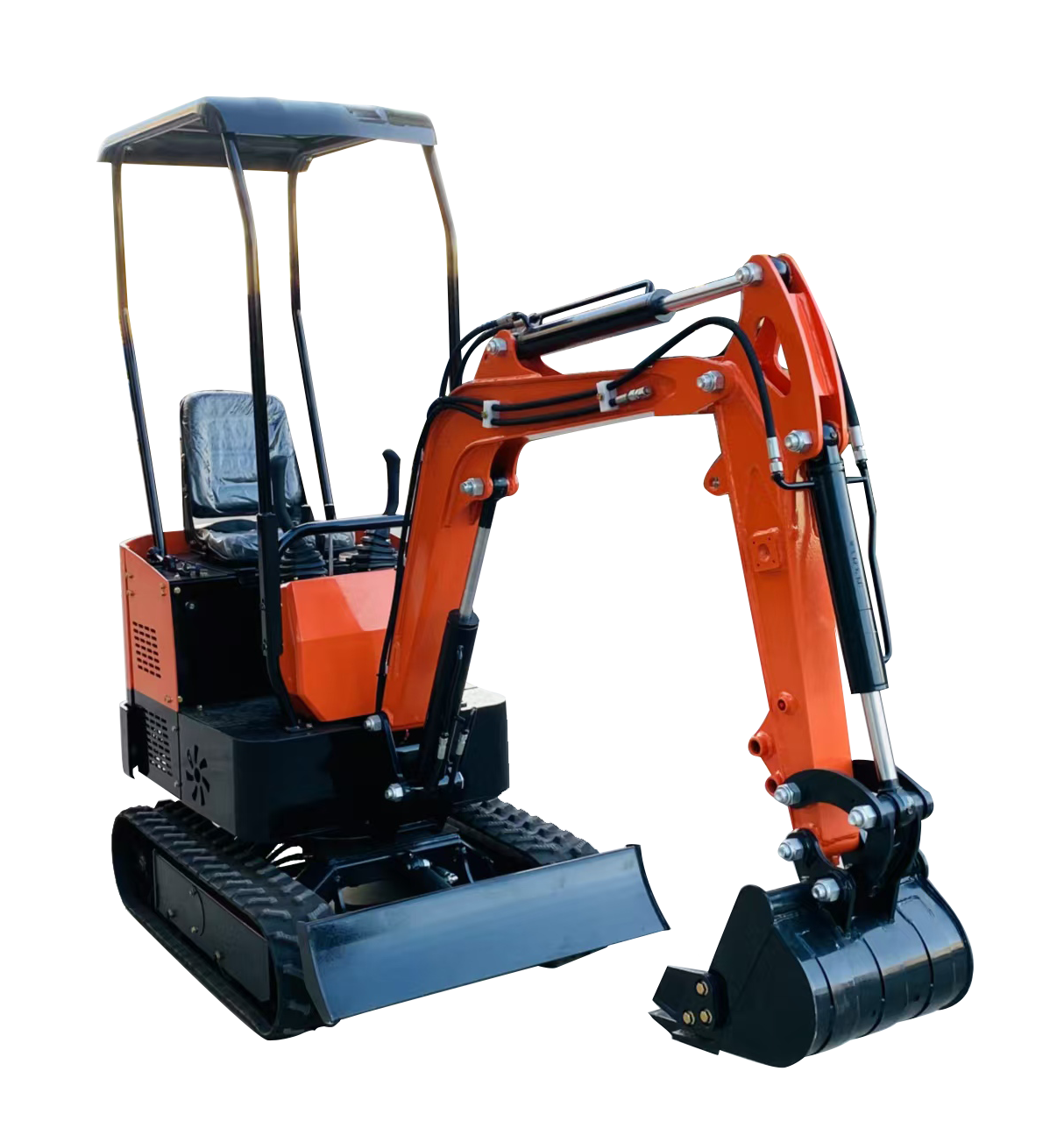

M10 Mini Excavator

LeadMan Engineering Machinery Co., Ltd. introduces the M10 — a compact powerhouse designed for agility, efficiency, and small-scale projects. Weighing just 1.0 ton, this mini excavator is perfect for urban projects and tight spaces, powered by a KOOP engine (7.6 kW) with a digging depth of 1,340 mm.

Key Highlights:
🔹 Lightweight & Nimble: 1.0-ton operating weight and 360-degree body swing.
🔹 Compact & Capable: Digging depth of 1,340 mm with a bucket capacity of 0.017 m².
🔹 Essential Features: Includes a sunshade canopy, rubber tracks, and a toolbox.

Specifications

M10 Mini Excavator — Specifications Table of main dimensions, specification, and working range for the M10 mini excavator. Model Name: M10 — Mini Excavator MAIN DIMENSIONS Overall Length (mm) 2820 Overall Width (mm) 943 Overall Height (mm) 2220 Track Width (mm) 180 Track Length (mm) 1257 Body Width (mm) 845 SPECIFICATION Bucket Capacity 0.017 m³ Engine 科普192 (Koop 192) — 7.6 kW Walking Speed 2.1 km/h Rotation Speed 8 r/min Platform Ground Clearance 285 mm Swing Angle 360° Angle of Roll Left 45° / Right 55° WORKING RANGE Max. Digging Radius (mm) 2600 Max. Digging Depth (mm) 1340 Max. Digging Height (mm) 1340 Max. Unloading Height (mm) 1550 Min. Swing Radius (mm) 1220 Max. Digging Depth of Dozer Blade (mm) 210 Max. Lifting Height of Dozer Blade (mm) 163

Dimensional Drawing
