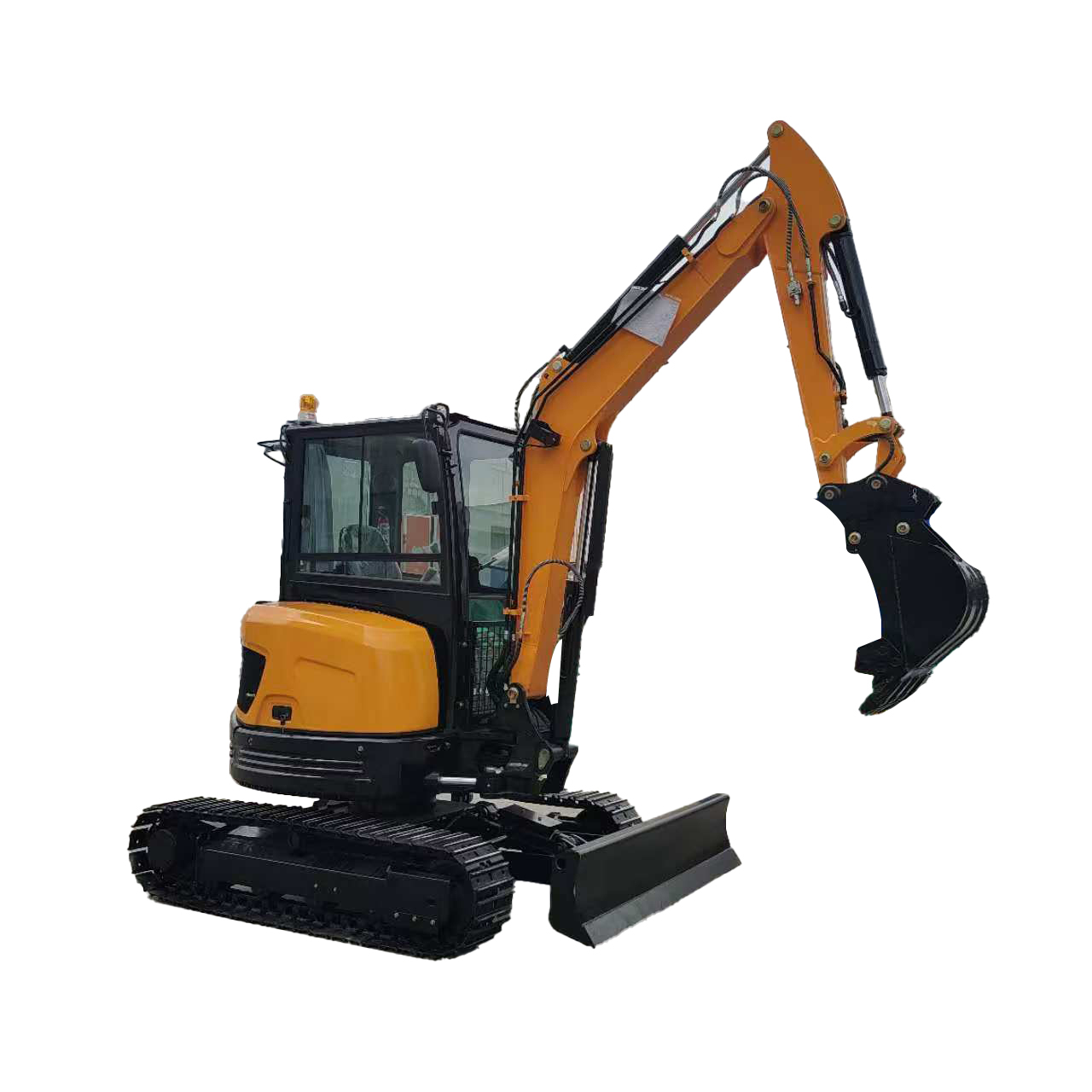

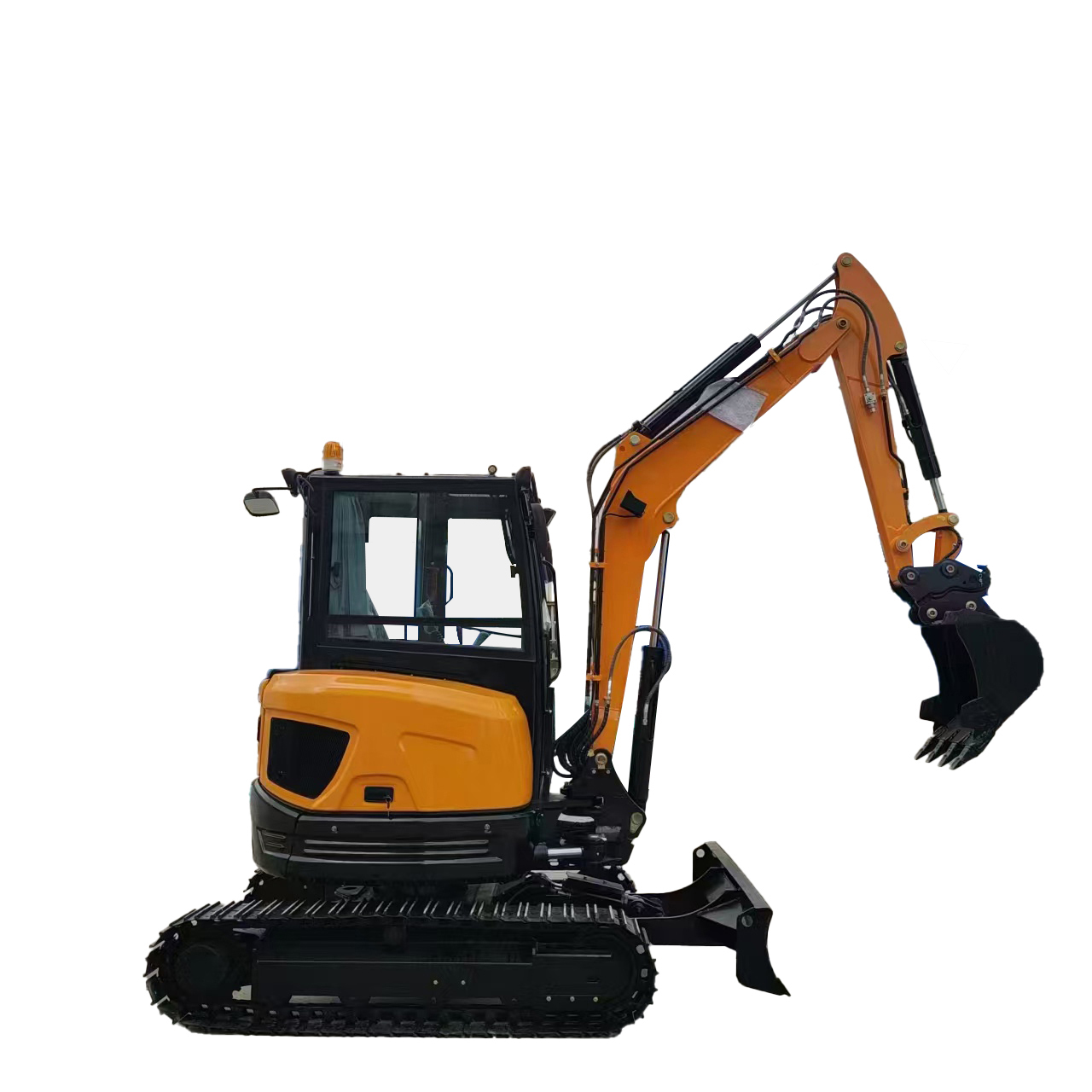

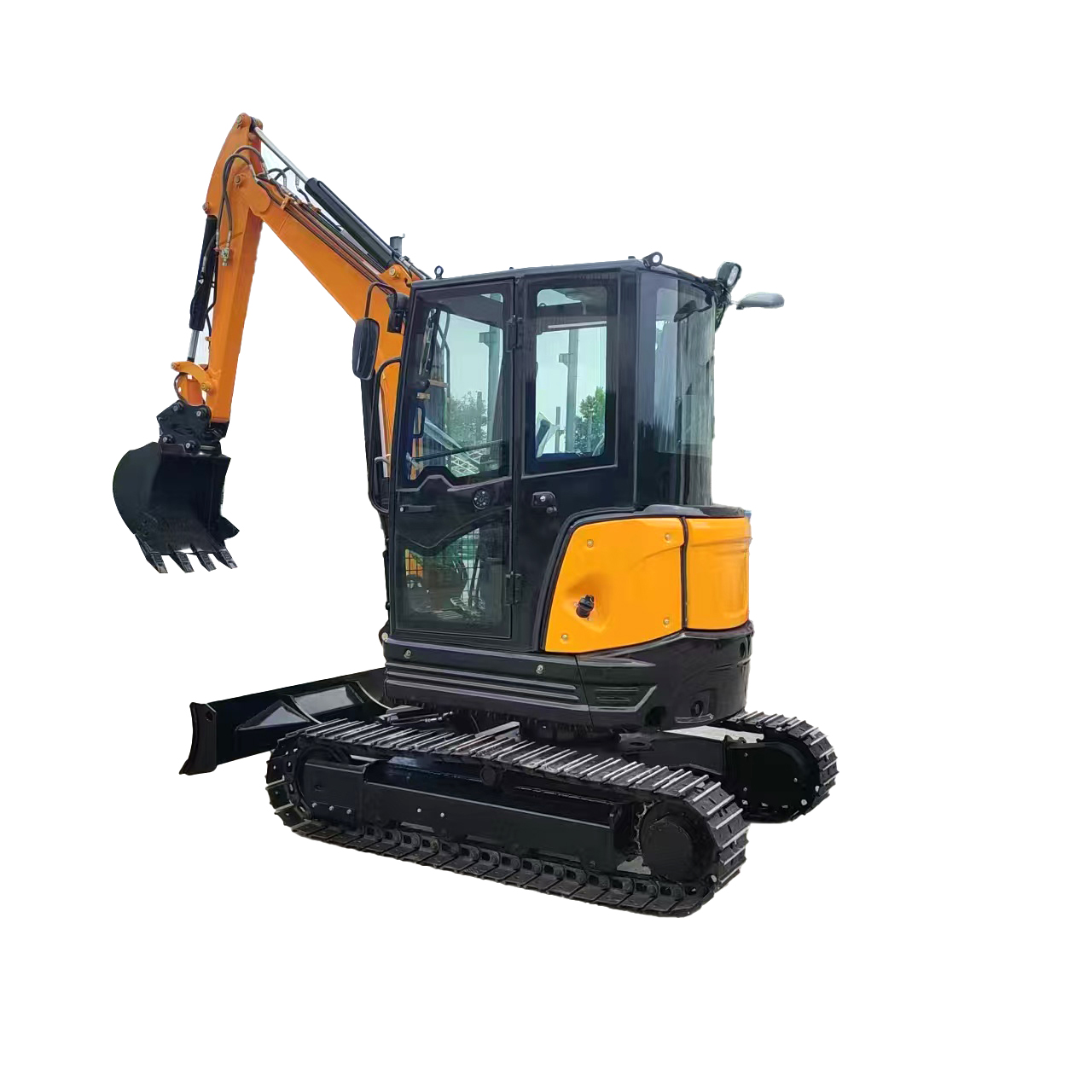

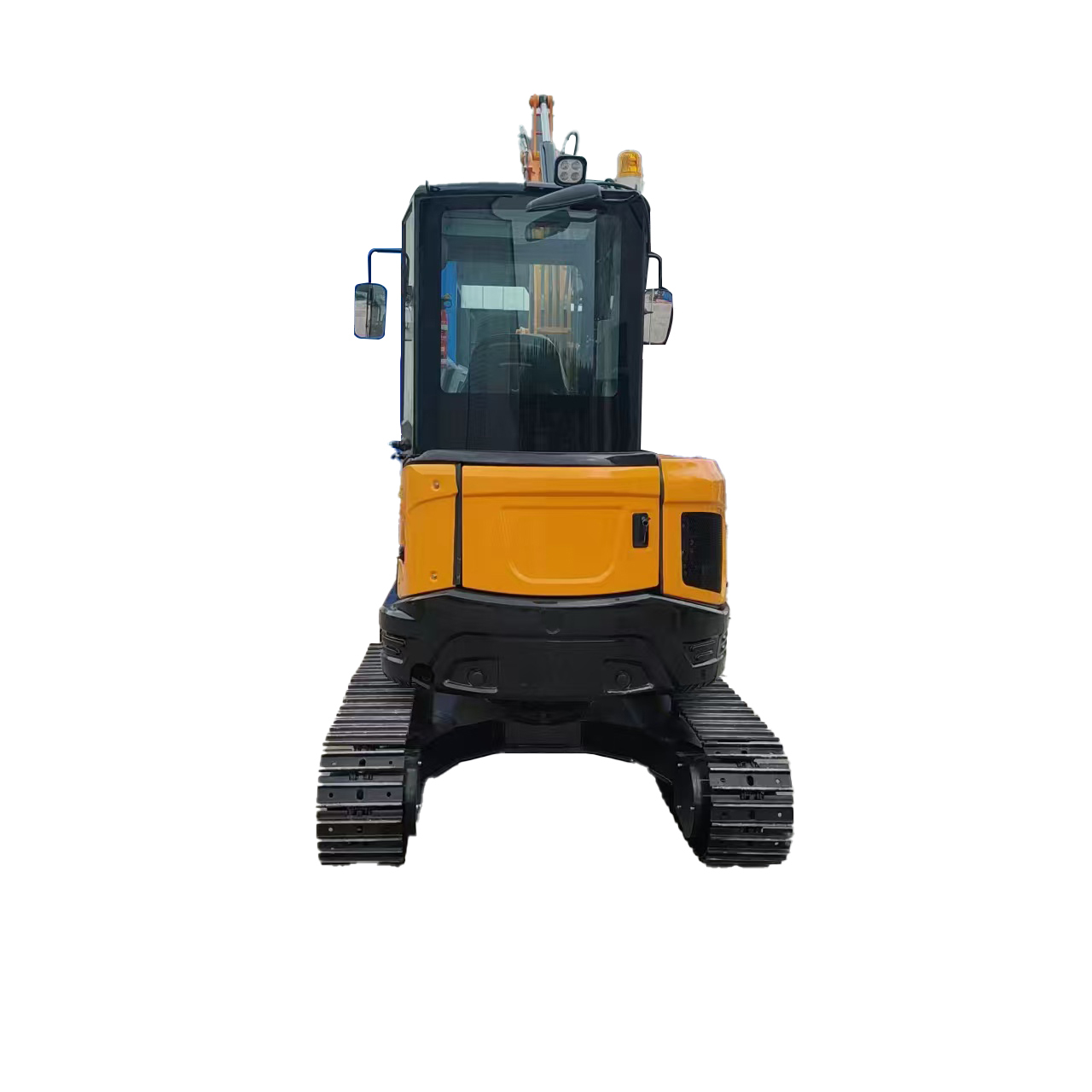

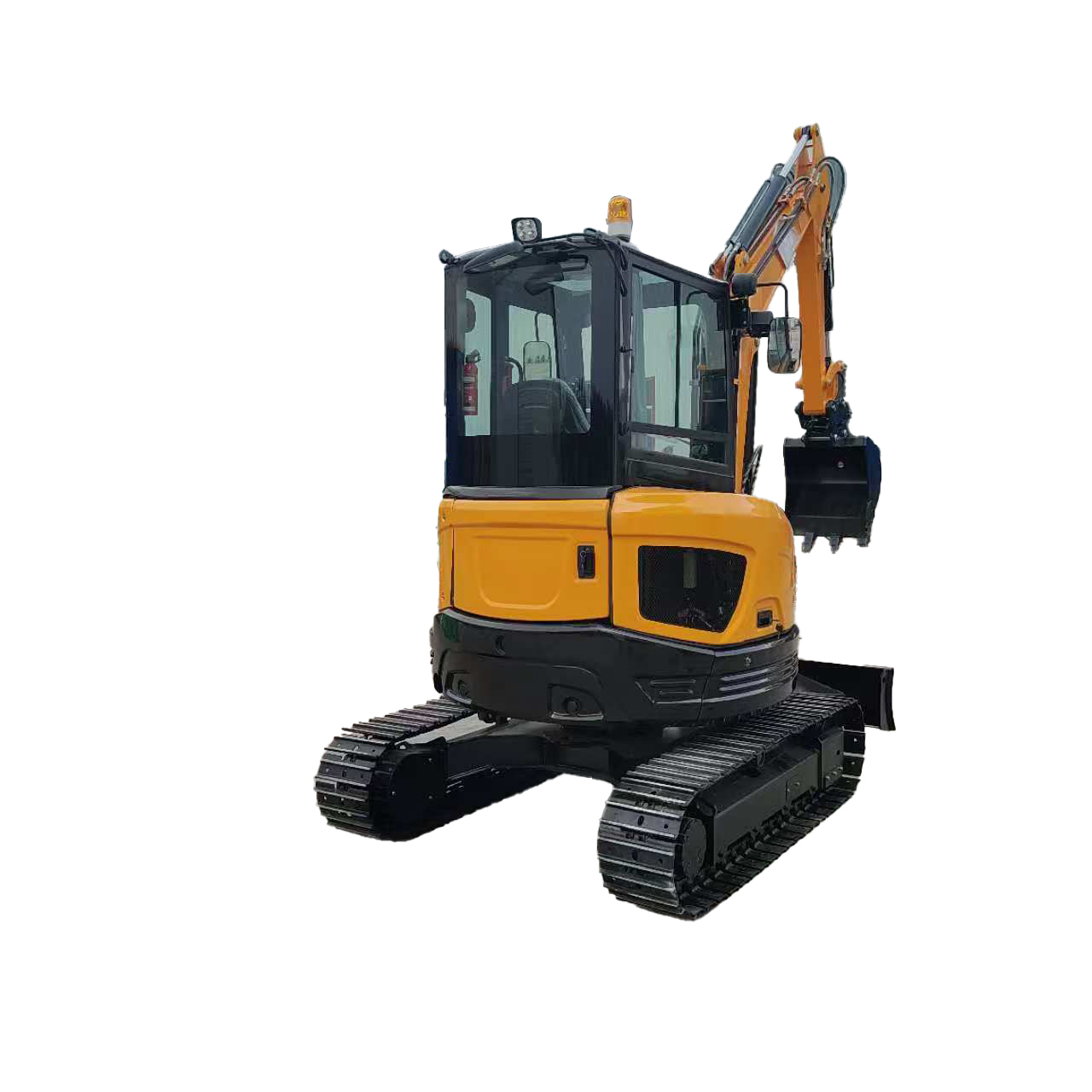

M35U Mini Excavator

LeadMan Engineering Machinery Co., Ltd. introduces the M35U — an advanced powerhouse designed for high performance, strength, and rugged terrain. Weighing 3.5 tons, this excavator offers a digging depth of 3,071 mm. It is powered by a Kubota 1703 engine (18.2 kW) and features steel tracks for superior traction.

Key Highlights:
🔹 High Performance: Digging depth of 3,071 mm.
🔹 Durable Tracks: Steel tracks for stability and traction on tough ground.
🔹 Reliable Engine: Features a Kubota 1703 engine with 18.2 kW of power.

Specifications

Model Name: M30U — Mini Excavator MAIN DIMENSIONS Overall Length (mm)4945 Overall Width (mm)1700 Overall Height (mm)2585 Track Width (mm)300 Track Length (mm)2286 Body Width (mm)1500 SPECIFICATION Operation Weight3.5 ton Engine Brand久保田 1703 Rated Power18.2 kW Digging Bucket Capacity0.11 m³ Bucket Width580 mm Traveling Motor高低速 - 力克川 Travel Speed4.0 / 2.3 km/h Swing Motor力克川 Swing Speed12 r/min Hydraulic System柱塞泵 / (整套: 龙工 / 恒立) Body Swing Radius858 mm Body Swing Angle360° Boom Swing Angle (L/R)68° / 50° Max. Grade Ability35° WORKING RANGE Max. Digging Radius5251 mm Max. Digging Depth3071 mm Max. Digging Height4815 mm Max. Unloading Height3382 mm Min. Swing Radius2250 mm Max. Digging Depth of Dozer Blade433 mm Max. Lifting Height of Dozer Blade345 mm

Dimensional Drawing
