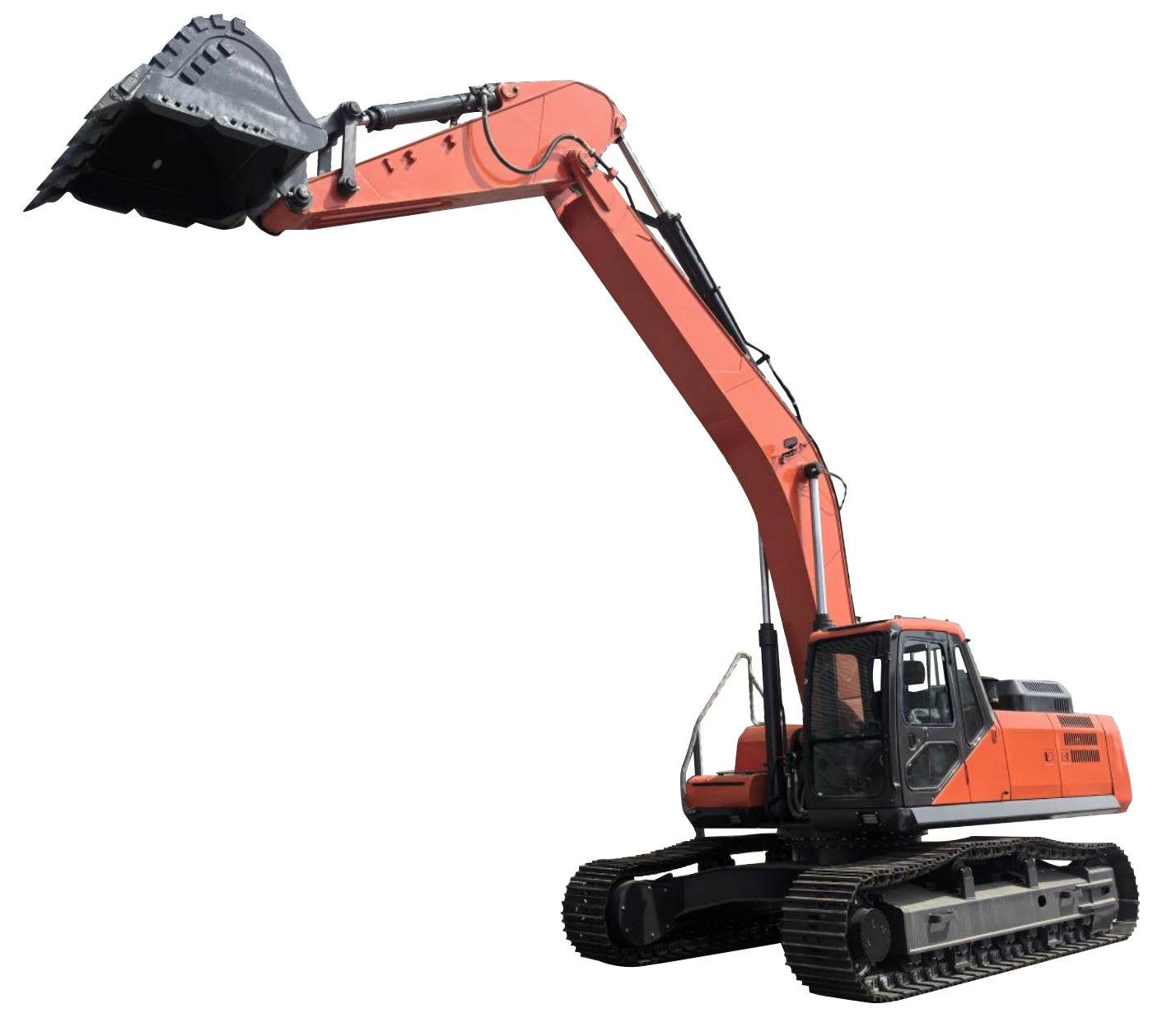

DM350 Excavator

LeadMan Engineering Machinery Co., Ltd. introduces the DM350 — an ultimate powerhouse designed for unmatched strength, deep reach, and heavy-duty work. With a vehicle weight of 34,600 kg, this excavator is built to handle the toughest jobs. It is powered by a Cummins 6CT8.3 engine (194 kW) and has a digging depth of 7,190 mm.

Key Highlights:
🔹 Maximum Weight: 34,600 kg vehicle weight.
🔹 Extreme Power: 194 kW Cummins 6CT8.3 engine.
🔹 Deep Reach: Digging depth of 7,190 mm.

Specifications

Model Name: DM520 Large Excavator MAIN DIMENSIONS Track shoe width600 mm Track length5465 mm Track gauge3300 mm Track contact length4470 mm Rear swing radius3665 mm Ground clearance760 mm Counterweight clearance1460 mm Upper frame width3278 mm Lower frame width3350–3900 mm Cab height3350 mm Machine length12110 mm Machine width3350–3900 mm Machine height3705 mm SPECIFICATION Vehicle weight51500 kg Engine power298 kW Engine brandCummins Rated speed1800 r/min Boom length7100 mm Arm length3350 mm Bucket capacity2.86 m³ Arm digging force (ISO)217 kN Bucket digging force (ISO)267 kN Main pump flow2×359 L/min Pilot pump flow24 L/min POWER SYSTEM Engine modelCummins QSM11 PumpKawasaki Model 212 ValveParker (Doosan) Swing motorDoosan/Eaton (Korea) Travel motorAidi HYDRAULIC SYSTEM Main pump typeParallel swashplate piston Main pump flow2×359 L/min Pilot pump typeGear pump Pilot pump flow24 L/min WORKING RANGE Max digging height11080 mm Max dumping height7900 mm Max digging depth7790 mm Max vertical digging depth4370 mm Max digging radius12100 mm Max horizontal digging depth7660 mm

Dimensional Drawing
